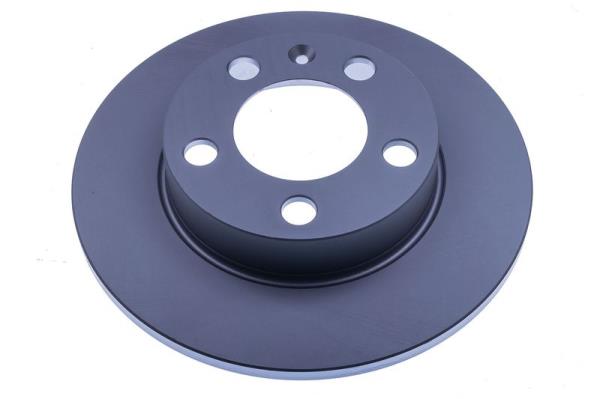

Brake Disc

B130200P Catalog no:

Manufacturer: DENCKERMANN Brake Disc Type : solid Outer Diameter [mm] : 230 Brake Disc Thickness [mm] : 9 Minimum thickness [mm] : 7 Inner Diameter [mm] : 125,8 Bore Diameter [mm] : 15,6 Bolt Hole Circle Ø [mm] : 100 Number of Holes : 5 Height [mm] : 40,6 Centering Diameter [mm] : 65 Surface : painted EU General Product Safety Regulation (GPSR) : IEC 60417-6183 mechanical expertise required

Additional information

Description

Brake Disc Type : solid Outer Diameter [mm] : 230 Brake Disc Thickness [mm] : 9 Minimum thickness [mm] : 7 Inner Diameter [mm] : 125,8 Bore Diameter [mm] : 15,6 Bolt Hole Circle Ø [mm] : 100 Number of Holes : 5 Height [mm] : 40,6 Centering Diameter [mm] : 65 Surface : painted EU General Product Safety Regulation (GPSR) : IEC 60417-6183 mechanical expertise required

Suitable vehicles

AUDI

SEAT

SKODA

VW

Zastosowanie własne

OEM Part Number

BRILLIANCE: 3496009 SEAT: 1J0 615 601 SEAT: 1J0 615 601 C SEAT: 1J0 615 601 N SEAT: 1J0 615 601 P SEAT: 2Q0 615 601 H SEAT: 1J0 615 601 Q SKODA: 1J0 615 601 SKODA: 1J0 615 601 C SKODA: 1J0 615 601 N SKODA: 1J0 615 601 P SKODA: 2Q0 615 601 H SKODA: 1J0 615 601 Q VAG: 1J0 615 601 C VAG: 1J0 615 601 VAG: 1J0 615 601 N VAG: 1J0 615 601 P VAG: 2Q0 615 601 H VAG: 1J0 615 601 Q VW: 1J0615601 VW: 1J0615601C VW: 1J0615601N VW: 1J0615601P VW (FAW): 5QD615601A VW (FAW): 6QD615601 VW (SVW): 6QD615601A
