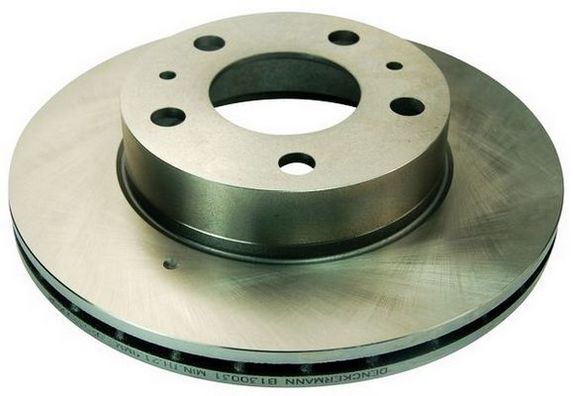

Brake Disc

B130031 Catalog no:

Manufacturer: DENCKERMANN Brake Disc Type : Vented Outer Diameter [mm] : 300 Brake Disc Thickness [mm] : 24 Minimum thickness [mm] : 21,9 Inner Diameter [mm] : 161 Bore Diameter [mm] : 17,5 Bolt Hole Circle Ø [mm] : 130 Number of Holes : 5 Height [mm] : 65,5 Centering Diameter [mm] : 80 EU General Product Safety Regulation (GPSR) : IEC 60417-6183 mechanical expertise required

Additional information

Description

Brake Disc Type : Vented Outer Diameter [mm] : 300 Brake Disc Thickness [mm] : 24 Minimum thickness [mm] : 21,9 Inner Diameter [mm] : 161 Bore Diameter [mm] : 17,5 Bolt Hole Circle Ø [mm] : 130 Number of Holes : 5 Height [mm] : 65,5 Centering Diameter [mm] : 80 EU General Product Safety Regulation (GPSR) : IEC 60417-6183 mechanical expertise required

Suitable vehicles

CITROËN

FIAT

PEUGEOT

Zastosowanie własne

OEM Part Number

CITROËN: 4246Y3 CITROËN: 4246 Y3 CITROËN: 4249H9 CITROËN: 4246 K3 CITROËN: 4249 H2 CITROËN: 4249 36 CITROËN: 16 078 722 80 CITROËN: 4249 H9 CITROËN/PEUGEOT: 00004246Y3 FIAT: 46806234 FIAT: 51728378 FIAT: 51740247 FIAT: 51858362 FIAT: 51858363 FIAT: 71739637 FIAT: 1307356080 FIAT: 1341044080 FIAT: 1341045080 PEUGEOT: 4246 K2 PEUGEOT: 4249 H2 PEUGEOT: 4246 Y5 PEUGEOT: 4249 35 PEUGEOT: 4246 Y3 PEUGEOT: 16 078 722 80 PEUGEOT: 4249 H9 PEUGEOT: 424935 PEUGEOT: 424936 PEUGEOT: 4246K2 PEUGEOT: 4246K3 PEUGEOT: 4246Y5 PEUGEOT: 4249H2
