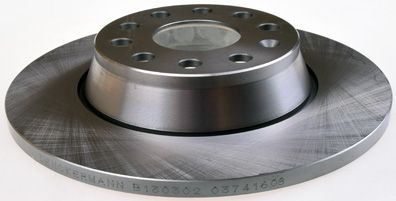

Brake Disc

B130302 Catalog no:

Manufacturer: DENCKERMANN Outer Diameter [mm] : 282,0 Brake Disc Thickness [mm] : 12,0 Minimum thickness [mm] : 10,0 Brake Disc Type : solid Number of Holes : 5 No. of holes 2 : 9 Bolt Hole Circle Ø [mm] : 112,0 Height [mm] : 48,6 Centering Diameter [mm] : 65,0 Inner Diameter [mm] : 159,0 Bore Ø [mm] : 15,3

Additional information

Description

Outer Diameter [mm] : 282,0 Brake Disc Thickness [mm] : 12,0 Minimum thickness [mm] : 10,0 Brake Disc Type : solid Number of Holes : 5 No. of holes 2 : 9 Bolt Hole Circle Ø [mm] : 112,0 Height [mm] : 48,6 Centering Diameter [mm] : 65,0 Inner Diameter [mm] : 159,0 Bore Ø [mm] : 15,3

Suitable vehicles

AUDI

SEAT

SKODA

VW

Zastosowanie własne

OEM Part Number

SEAT: 1K0 615 601 M SEAT: 1K0 615 601 AD SEAT: 5Q0 615 601 G SKODA: 3CD615601 SKODA: 1K0 615 601 M SKODA: 1K0 615 601 AD SKODA: 5Q0 615 601 G VW: 1K0615601AD VW: 1K0615601M VAG: 1K0 615 601 M VAG: 1K0 615 601 AD VAG: 5Q0 615 601 G VW (FAW): L3CD615601
